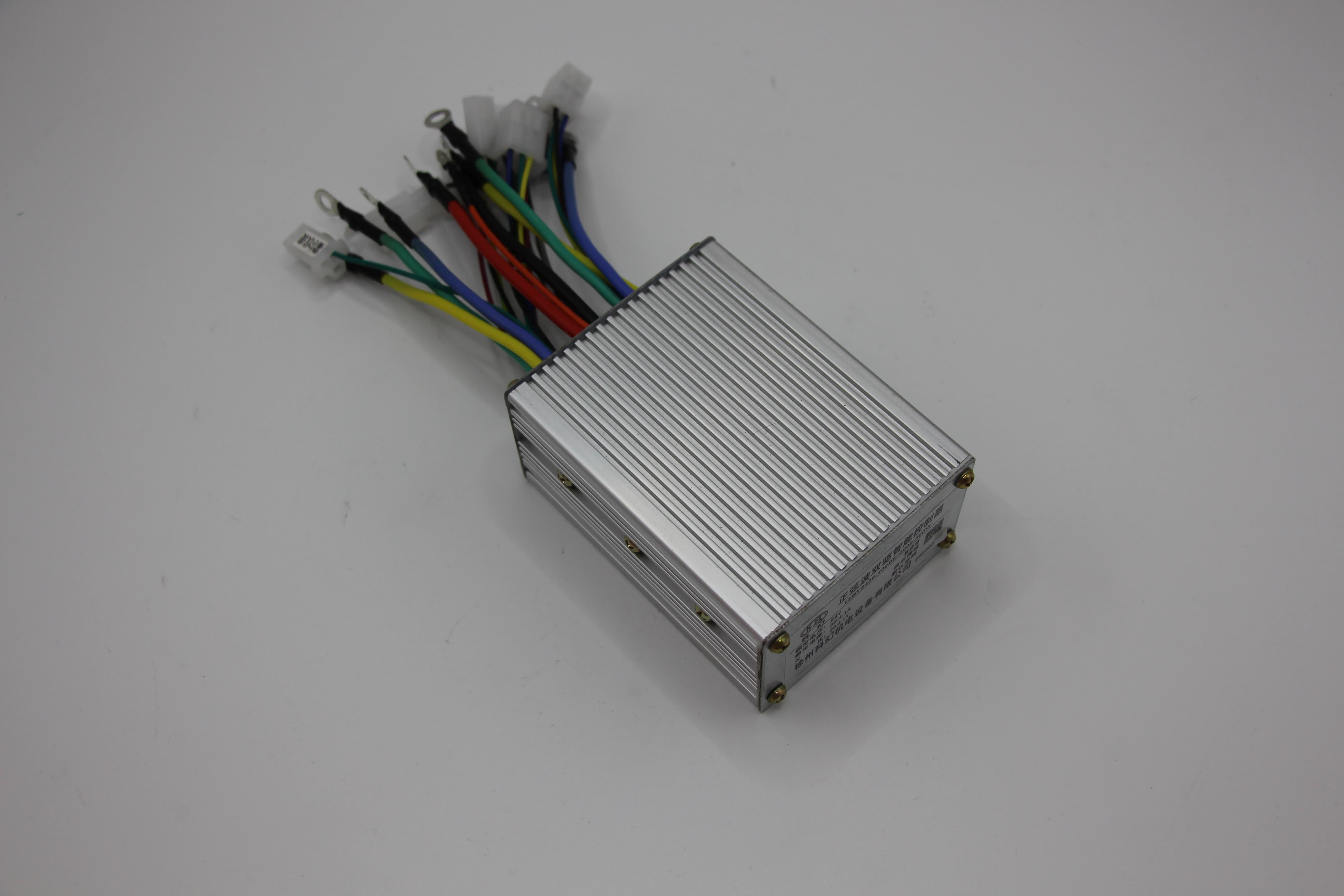

OEM PMSM Sine Wave Electric Tricycle Controller

If you operate passenger electric tricycles, sightseeing vehicles, or premium cargo trikes, you have probably heard the complaints: the motor whine is too loud, the ride feels rough, and the battery drains faster than expected. Square wave controllers are cheap, but they waste energy as heat and noise, and they deliver torque in pulses that passengers can feel. For operators who run 10-hour shifts or serve tourists who expect a smooth experience, that difference matters every single day. At Xuzhou Kehuan Electrical & Mechanical Equipment Co., Ltd., we have built our EC-02 series around PMSM sine wave technology since 2014. These controllers use FOC vector control to deliver continuous, smooth current to permanent magnet synchronous motors — the result is quieter operation, higher efficiency, and noticeably longer range on the same battery pack. If you are looking for a sine wave PMSM Electric Tricycle Controller 3KW rated and proven in real passenger and light-cargo applications, this is the series we recommend first.





Compatible motor types: Permanent Magnet Synchronous Motor (PMSM), 3-phase sine wave

Rated voltage: 48V / 60V / 72V (96V available on request)

Current range: 30A (light passenger) up to 100A (3KW cargo / multi-passenger)

Rated power: 800W – 3,000W

Control method: FOC (Field-Oriented Control) vector control with auto-tuning

Efficiency at rated load: ≥ 92%

Combined noise level (motor + controller): ≤ 55 dB at 1 meter

Protection functions: Over-voltage, under-voltage, over-current, thermal protection, locked-rotor protection, regenerative braking, soft-start

Operating temperature: -20°C to +50°C

Operating altitude: ≤ 4,000 m

Certification: ISO 9001:2015, GB/T 18488.2 test standard





Factory Credentials and Scale



— ISO 9001:2015 certified since establishment; national High-Tech Enterprise status

— MES + ERP digital production management — every batch is traceable

— Serving 1,000+ domestic and overseas customers across 14 years

— Annual production growth of 15%+ for 10 consecutive years

— University R&D partnership with Guilin University of Electronic Technology

— Third Prize, 9th Xuzhou Science & Technology Innovation Competition (Brushless Drive System project, 2021)

— Repeatedly awarded "Best Supplier" and "Strategic Partner" by major OEM clients



Product Line Advantage: Permanent Magnet Synchronous Motor Controller for Electric Trike



Our EC-02 range is the only dedicated PMSM sine wave line from a Chinese controller factory that covers 48V through 72V and 800W through 3KW from a single production floor. We do not repurpose square wave hardware with a different firmware label — the EC-02 uses dedicated sine wave MOSFET drivers, higher PWM frequency, and FOC algorithms tuned for PMSM rotors. When you source a permanent magnet synchronous motor controller for electric trike applications from us, you get hardware that was designed for the motor type, not adapted to it.





— Voltage customization: 48V, 60V, 72V, 96V

— Current limit and torque curve: factory-set or customer-specified for your motor KV rating

— Speed limit, acceleration ramp, and regenerative braking intensity: programmable

— Wire gauge, connector type, and housing dimensions: configurable for your assembly line

— OEM/ODM branding: label, packaging, and firmware version

— Minimum order: 50 units per SKU (mixed SKUs accepted)

— Tooling support available for large-volume customization (500+ units)



Client profile: A tourist transportation company operating 60 electric passenger tricycles in Bali, Indonesia, serving hotel and temple tour routes. Vehicles run two shifts per day, approximately 10 hours total operation.

The problem: The fleet had been using 24-tube 60V square wave controllers paired with generic BLDC motors. Driver complaints were consistent: the motor whine at 25–35 km/h was loud enough to require raised voices during tours, and vibration through the seat and handlebars made the 2-hour temple route uncomfortable for elderly passengers. Battery range was 65 km per charge, which forced a midday battery swap on the longest route — adding labor cost and vehicle downtime.

The solution: The operator switched to our EC-02 60V 50A PMSM sine wave controllers, paired with our recommended 1,500W PMSM hub motors. We tuned the FOC parameters for their specific motor inductance and installed a mild regenerative braking curve matched to Bali's downhill coastal roads. We provided the complete GB/T 18488.2 test report and a written compatibility confirmation.



Results after 12 months in operation:



— Combined motor and controller noise at cruise speed: reduced from 72 dB to 54 dB (measured at driver ear position)

— Passenger comfort complaints related to vibration and noise: 31 per month down to 2 per month

— Battery range per charge: increased from 65 km to 78 km (an 18% improvement)

— Midday battery swaps eliminated on all but the peak-season extended route

— Driver satisfaction score (internal survey): improved from 3.2/5 to 4.6/5

— The operator added 20 new vehicles in Year 2, all specified with EC-02 controllers from the factory



This is what a low noise high efficiency Electric tricycle controller manufacturer is supposed to deliver — not just quieter operation, but measurable savings in battery wear, driver fatigue, and customer complaints.





Q1: Will the EC-02 work with my existing PMSM motor, or do I need to buy your motor too?

Yes. The EC-02 is compatible with standard 3-phase PMSM motors from most manufacturers. We need your motor's rated voltage, rated power, pole pair number, and Hall sensor / encoder specifications. Our engineers will confirm compatibility in writing and, if needed, pre-tune the FOC parameters before shipment so the controller is plug-and-play on arrival. You do not need to change your motor unless you want to upgrade to a higher-efficiency model.

Q2: What is the minimum order quantity, and can I mix voltage variants?

Minimum order is 50 units per SKU. Mixed SKU orders (for example, 100 units split across 48V and 60V variants) are accepted with no surcharge. For orders of 500 units or more, we assign a dedicated production batch and provide a pre-shipment sample for your approval. Sample orders of 5–10 units are available at standard unit price for pre-production testing.

Q3: What documentation do you provide for customs clearance and product compliance?

We provide the following as standard: ISO 9001:2015 certificate (English copy), GB/T 18488.2 test report, commercial invoice, packing list, and certificate of origin. If your import country requires additional documentation — such as CE marking support, RoHS declaration, or third-party inspection — please inform us at the inquiry stage. We have supported customers in the EU, Southeast Asia, Latin America, and Africa with documentation requirements.





If you are sourcing a sine wave PMSM electric tricycle controller for passenger vehicles, sightseeing fleets, or any application where noise, efficiency, and range matter, we want to talk about your actual requirements — not just send a price list.

We offer:

— Free sample testing (5 units, buyer pays freight)

— Written compatibility confirmation within 48 hours of receiving motor specs

— Technical support via WhatsApp or email throughout the product life cycle

— Dedicated account manager for orders above 500 units/year



Send us your motor spec sheet, your monthly volume estimate, and your target market — and we will come back with a full product recommendation, technical parameters, and a competitive ex-works price within 24 hours.
